Slim Tube System

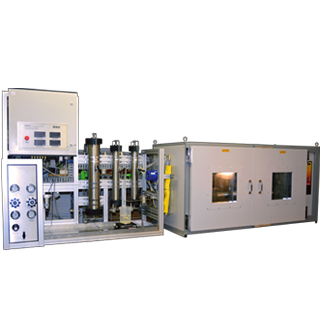

M9130 Slim Tube System
M9130 Slim Tube System
- Core Length: up to 3 in.
- Tube Length: 80 ft. (24 m.)
- Tube Diameter: 1/4 inches OD tube
- Max Pressure: 10,000 psi | Max Temperature: 302°F (150°C)
The M9130 Slim Tube System tests dynamic miscible (homogeneous) solutions at reservoir conditions. After miscible displacement tests, the data is plotted into a recovery curve.
Upgrades
Optional upgrades, such as a density meter or a gas chromatograph, can extend the capabilities of the instrument.
| Tube Length: 80 ft. (24 m.) |
| Tube Diameter: 1/4 inches OD tube |
| Material: Stainless Steel |
| Porous Media: Calibrated 230 - 310 μm silica |
| Approx porosity: 35 % |
| Approx pore volume: 100 cc |
| Working Temperature: 302°F (150°C) |
| Working Pressure: 10,000 psi (700 bar) |
| Fluids: Oil, HC gas, CO2 |
| Power: 220 VAC, 50 Hz |
- Determines miscibility at reservoir conditions
- Raw data obtained after testing
- Produced gas is measured by wet gas meter
- High level of automation
- Ultrasonic multiphase separator for liquid measurement
- Many add on tools extend unit capabilities
- Embedded gas injection pump makes safe and easy operation for user
- The liquid waste (effluent) discharged from the slim tube can be observed through a glass capillary sight tube.
